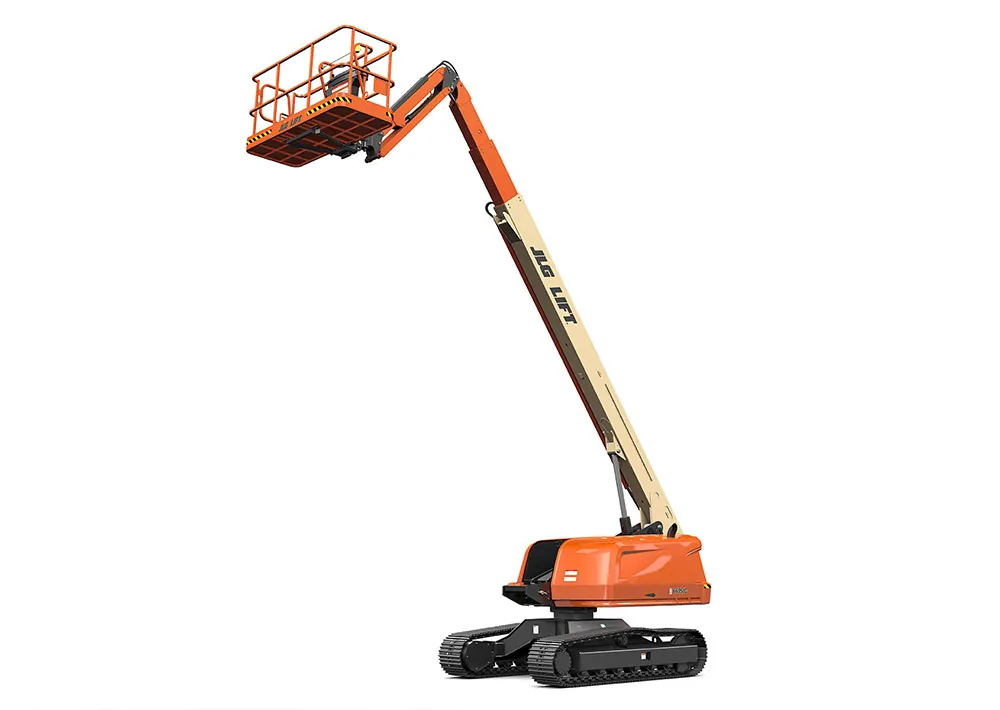

JLG 660SJC Boom Lift
Details
Navigate challenging job sites with the JLG 660SJC Crawler Series telescopic boom lifts, designed for enhanced flotation and traction for the most challenging job sites. A crawler undercarriage, improved maneuverability on soft surfaces and a zero turning radius enable a crawler-style telescopic boom lift to access places others just can’t go. Plus, 660SJC telescoping lifts are equipped with all-steel tracks and available rubber pucks for use on paved surfaces.
Key Specs
- Platform Height: 65 ft 7 in. / 19.99 m
- Platform Capacity – Restricted: 750 lb / 340.19 kg
- Platform Capacity – Unrestricted: 550 lb / 249.48 kg
- Horizontal Outreach: 57 ft 1 in. / 17.39 m
Key Features
- For your toughest jobs and terrains, the 600 Crawler Series provides the mobility you need
- Single drive / steer joystick for one-handed operation
- Zero turning radius to get around the jobsite easier
- Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
- Equipment Type
- Aerial Lifts / Telescopic Boom Lifts
Capacity – Fuel Tank:
31 gal. / 117.35 L
Engine Type – Diesel:
Deutz TD2.9L4 Tier4 Final
Drive Speed – 4WD:
1.6 mph / 2.57 km/h
Grade-ability – 4WD:
55 %
Jib – Range of Articulation:
132 degrees
Platform Capacity – Restricted:
750 lb / 340.19 kg
Platform Capacity – Unrestricted:
550 lb / 249.48 kg
Swing:
360 Degrees
Swing Type:
Continuous
Machine Height:
8 ft 2 in. / 2.5 m
Machine Length:
35 ft 5 in. / 10.79 m
Track Width:
20 in
Machine Width:
8 ft 2 in. / 2.5 m
Platform Dimension A:
3 ft / 0.91 m
Platform Dimension B:
8 ft / 2.44 m
Horizontal Outreach:
57 ft 1 in. / 17.39 m
Platform Height:
65 ft 7 in / 19.99 m
Machine Weight:
27620 lb / 12528.22 kg
- For your toughest jobs and terrains, the 600 Crawler Series provides the mobility you need
- Single drive / steer joystick for one-handed operation
- Zero turning radius to get around the jobsite easier
- Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
Details
Navigate challenging job sites with the JLG 660SJC Crawler Series telescopic boom lifts, designed for enhanced flotation and traction for the most challenging job sites. A crawler undercarriage, improved maneuverability on soft surfaces and a zero turning radius enable a crawler-style telescopic boom lift to access places others just can’t go. Plus, 660SJC telescoping lifts are equipped with all-steel tracks and available rubber pucks for use on paved surfaces.
Key Specs
- Platform Height: 65 ft 7 in. / 19.99 m
- Platform Capacity – Restricted: 750 lb / 340.19 kg
- Platform Capacity – Unrestricted: 550 lb / 249.48 kg
- Horizontal Outreach: 57 ft 1 in. / 17.39 m
Key Features
- For your toughest jobs and terrains, the 600 Crawler Series provides the mobility you need
- Single drive / steer joystick for one-handed operation
- Zero turning radius to get around the jobsite easier
- Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
- Equipment Type
- Aerial Lifts / Telescopic Boom Lifts
