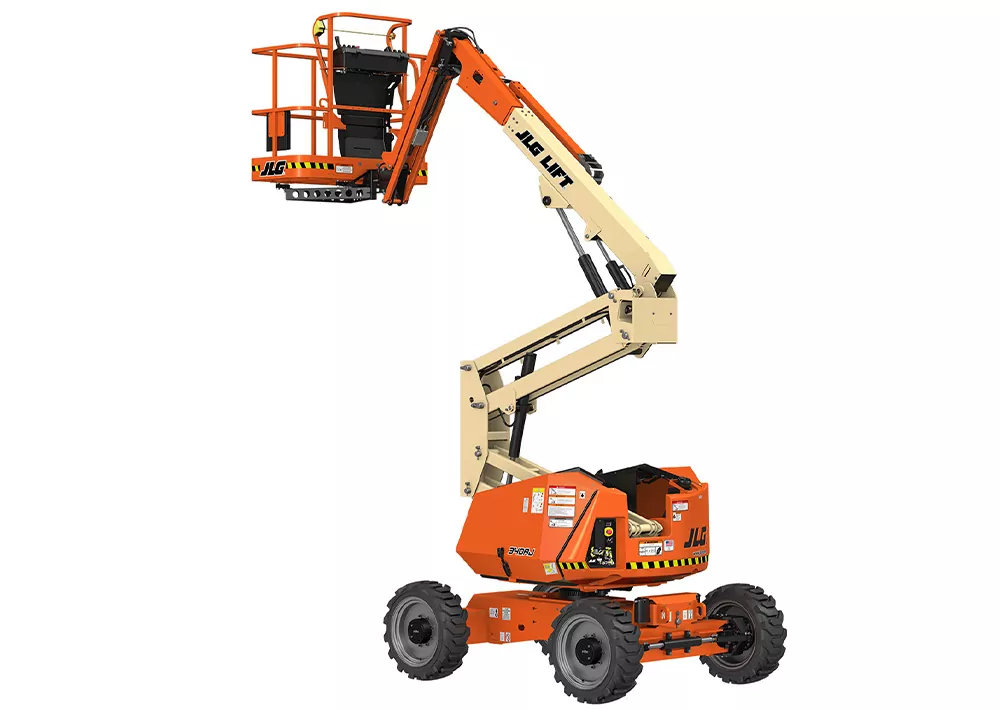

JLG 340AJ Boom Lift
Details
On the job site, days are measured by productivity. Your productivity. Which means you need equipment that stands up to the day’s demands. JLG® engine powered articulating boom lifts give you the extra reach you need to work over and around obstacles on the job site. They offer exceptional outreach, high capacity, versatile performance and easy maintenance. The larger work envelope on an articulating lift provides you with access to those hard-to-reach places.
The 340AJ articulating boom offers lower cost of ownership, industry-leading terrainability and an environmentally friendly Tier 4 diesel engine.
Key Specs
- Platform Height: 33 ft 10 in. / 10.31 m
- Platform Capacity – Unrestricted: 500 lb / 226.80 kg
- Horizontal Outreach: 19 ft 11 in. / 6.07 m
Key Features
- Lower cost of ownership
- Steel hoods provide added durability
- Environmentally-friendly Tier 4 diesel engine
- Industry-leading terrainability
- Ideal for general contractors, steel erectors, painters, stadium construction and more
- Equipment Type
- Aerial Lifts / Boom Lifts
Auxiliary Power:
12 Volts DC
Capacity – Fuel Tank:
13 gal. / 49.21 L
Engine Type – Diesel:
Kubota D1105 18.5 kW 24.8 hp
Engine Type – Dual Fuel:
PSI/GM 28.7 hp
Axle Oscillation:
6 in. / 0.15 m
Drive Speed – 4WD:
3.1 mph / 4.99 km/h
Grade-ability – 4WD:
45 %
Platform Capacity – Unrestricted:
500 lb / 226.80 kg
Swing:
355 Degrees
Swing Type:
Non-Continuous
Turning Radius – Outside:
5 ft / 1.52 m
Jib – Range of Articulation:
144 Degrees
Ground Clearance:
10 in. / 0.25 m
Horizontal Jib Rotation:
0 Degrees
Horizontal Outreach:
19 ft 11 in. / 6.07 m
Platform Height:
33 ft 10 in. / 10.31 m
Up and Over Height:
17 ft / 5.18 m
Machine Weight:
9700 lb / 4399.85 kg
- Lower cost of ownership
- Steel hoods provide added durability
- Environmentally-friendly Tier 4 diesel engine
- Industry-leading terrainability
- Ideal for general contractors, steel erectors, painters, stadium construction and more
