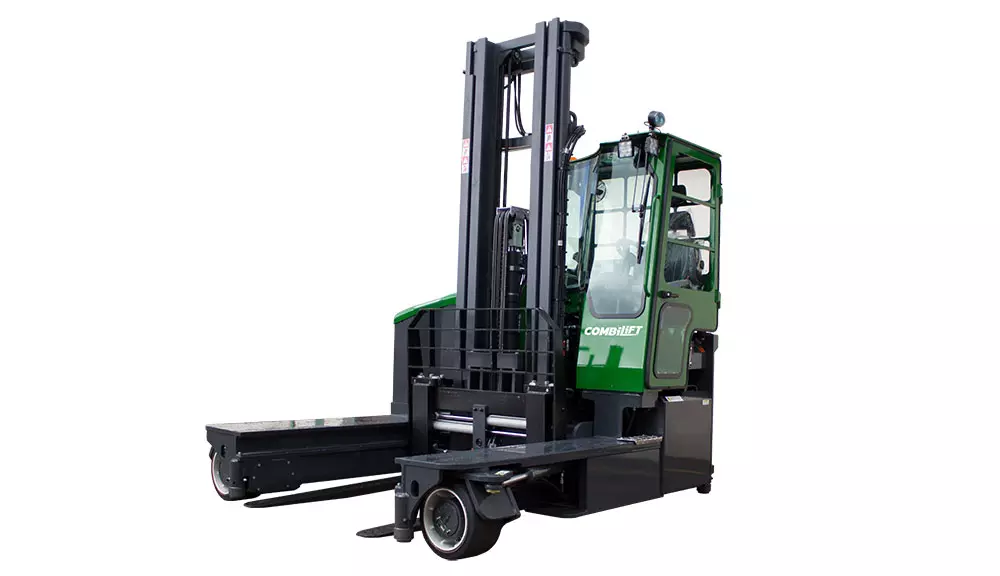

Combilift C8000E Multi-Directional Forklift

27 x 10-12 Rear Tire:
OD 27” / Width 10”

405 x 305 x 220 Front Tire (Solid Rubber):
OD 16” / Width 9”

AC Electric Pump Motor:
80V / 25 HP

AC Electric Traction Motor x 2:
80 V / 7 HP

Approach Angle:
45°

Backward Tilt:
5°

Battery Capacity:
80 V / 620 Ah

Capacity:
8000 lbs

Departure Angle:
45°

Fork Section:
2” x 6” x 47”

Forward Tilt:
3°

Frame Opening :
55”

Freelift Height:
0”

Gradebility:
10%

Ground Clearance to Center of Wheelbase:
4 ¼”

Ground Clearance Under Mast:
6”

Height Mast Closed:
112”

Height Over Cab (without work lights):
96”

Length From Face of Fork:
43 ½”

Load Center Distance:
24”

Mast Travel:
51”

Max. (Mast raised):
192”

Max. Lift Height:
159”

Maximum Ground Speed:
6 mph

Minimum Outside Radius:
91”

Outside Spread of Fork Arms:
53”

Overall Length:
91”

Overhang Back:
5” x 5 ¼”

Overhang Front:
8 ¾”

Platform Height:
19”

Platform Length:
47”

Ramp Angle:
17°

Standard Color:
Green & Gray

Track Front:
79 ¾”

Unladen Weight:
14,650 lbs

Wheelbase:
75”

Width:
89”
