Combilift COMBI-SC3 Telescopic Toplift Straddle Carrier

Details

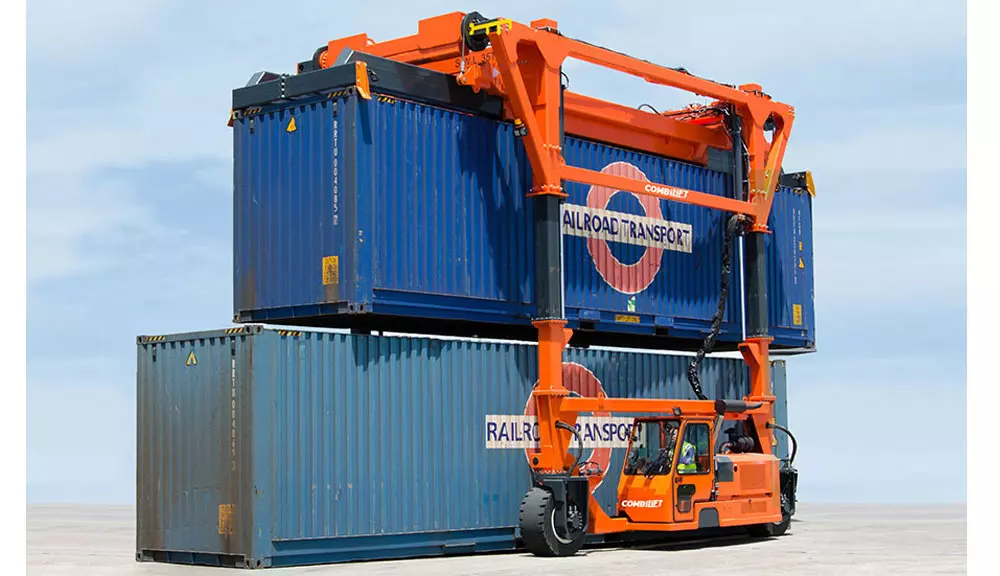

The Combilift COMBI-SC3 Telescopic Toplift is a high volume straddle carrier for the loading and unloading of containers. Its telescopic function allows the ability to double stack containers, and the toplift attachment enables the handling of over 12 containers per hour.

Equipment Type
Container Handlers / Forklifts

Lift Stroke:
87″

Overall Length:
338″

Overall Width:
194″

Overall Height:
194″-265″

Ground Clearance Under Cab:
11″

Height Over Cab:
91″

Track Front:
148″

Wheelbase:
227″

Width Load Area:
118″

Height Load Area:
172″-243″

Turning Radius:
285″

Capacity:
75,000 lbs

Unladen Weight:
42,300 lbs.

Grade-ability:
5% fully loaded

Maximum Ground Speed:
6 mph

John Deere 4045 Diesel:
125 HP

Electrics:
12 V

Tires:
4 x Super Elastic Soft Solid Tires

Standard Color:
Yellow & Gray

Suspension Seat:
KAB Model 116

Remote Control:
Optional

  • Highly Customizable
  • Low ground pressure when fully loaded
  • Easy to Service
  • Reduced fuel/energy consumption
  • Rough terrain & ramp friendly, works on compacted stone, bitumen and light concrete
  • Exceptional 3-wheel maneuverability
  • No brake maintenance
  • Ergonomically designed /driver friendly cab
  • Travels in/out of warehouse with ease
  • Same Unit can lift 20’, 30’, 40’, 45’ Containers
  • Side Shift Front & Rear
  • 360° vision when load is lifted
  • Soft Solid puncture proof tires
