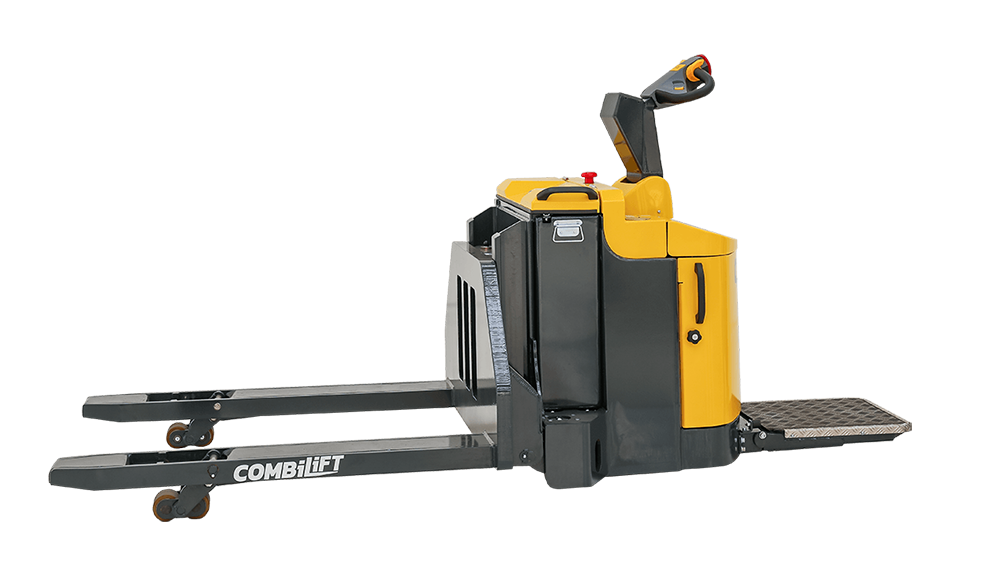

Combilift COMBI-PPT-HC Powered Pallet Truck

Max. Lift Height:
3 ¾”

Lowered Height:
3 ½”

Overall Height:
41″

Overall Length:
93″ (100″ option available)

Ground Clearance Under Fork:
¾”

Ground Clearance to Center of Wheelbase:
¾”

Width:
36″

Outside Spread of Fork Arms:
23″

Track Front:
14 ½”

Load Center Distance:
24″

Overhang Front:
13″

Wheelbase:
73″ (81″ option available)

Overhang Back:
8 ½”

Length From Face of Fork:
37 ½”

Fork Length:
55″ (63″ option available)

Minimum Outside Radius:
79″ (86 ½ available)
