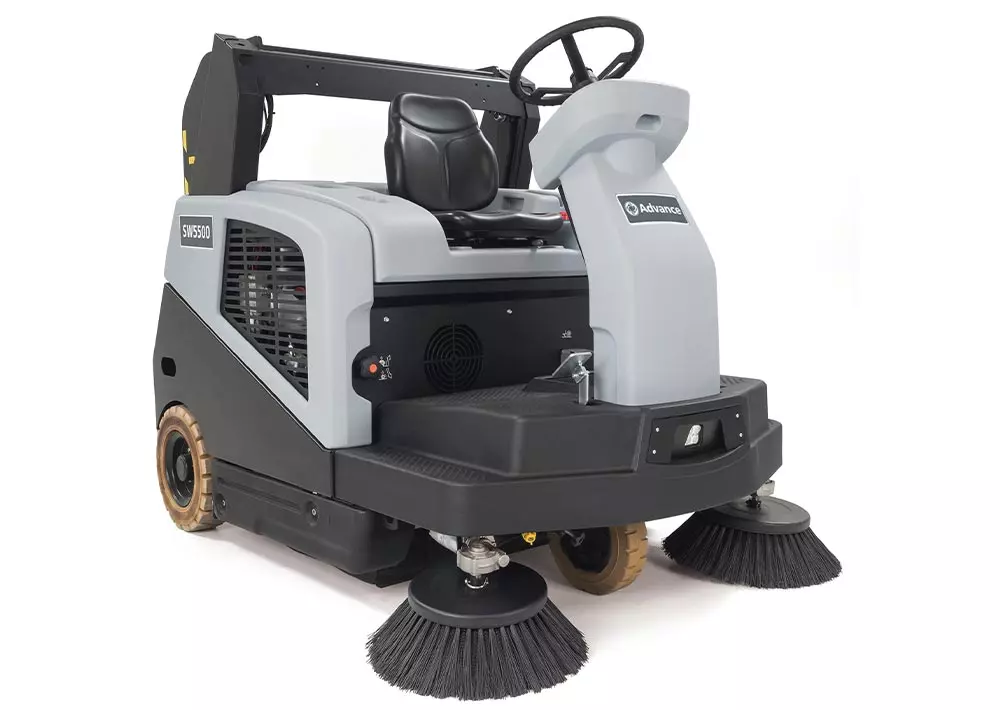

Advance SW5500 Sweeper
Details
Compact Design. Revolutionary Performance.
The innovative Advance SW5500 industrial sweeper is easy-to-use, highly productive, and will minimize your total costs to clean by providing efficient sweeping within a small footprint.
Benefits of SW5500 Rider Sweepers
The SW5500 Rider Sweeper delivers everything you’d expect and a lot more. With emissions-free battery configurations and a high-capacity high-dump hopper, this sweeper will increase your productivity and reduce your costs, whether you’re sweeping large floors or outdoor areas.
- Equipment Type
- Floor Cleaning / Rider Sweepers
Automatic speed control system:
Included
Automatic speed reduction:
Included
Compact design:
Included
Dimensions L x W x H:
74 x 47 x 62 in (188 x 119.4 x 157.5 cm)
DustGuard™ Dust-control System:
Included
Filter area ft² (m²):
75 sq ft (7 sq m)
High maneuverability:
Included
Hopper maximum weight:
530 lb (240 kg)
Hopper volume (L):
39.6 gal (150 L)
Intuitive Control Panel :
Included
Main broom:
33.5 in (85 cm)
Max climbing rate (%):
20%
Max dumping height (CM):
65 in (165 cm)
Max. speed:
5.6 mph (9 km/hr)
MaxAccess™:
Included
Model No:
56384943
No tools required for attachment change:
Included
Non-marking Wheels:
Included
Power source:
24 V, 366 Ah
Productivity rate with main broom theoretical/actual:
82,340 / 57,650 sq ft/hr (7,650 / 5,355 sq m/hr)
Productivity rate with one side broom theoretical/actual:
113,830 / 79,700 sq ft/hr (10,575 / 7,405 sq m/hr)
Productivity rate with two side brooms theoretical/actual:
145,312 / 101,720 sq ft/hr (13,500 / 9,450 sq m/hr)
Protection class / ip protection:
IPX3
Side broom diameter:
19.7 in (50 cm)
Side broom speed (RPM):
40 – 155 RPM
Sound pressure level (dB(A)):
68 dB A
Superior Line of Sight:
Included
Water tank capacity (L):
8.5 gal (32 L)
Weight (lbs):
1,400 lb (636 kg)
Working width with 2 side brooms:
60 in (152.5 cm)
Working width with right side broom:
45.25 in (117.5 cm)
- Improve dumping efficiency with the high-capacity, high-dump hopper
- Contribute to your green-cleaning efforts and reduce your cleaning costs with emissions-free battery configurations
- Easy maintenance, no tools required with MaxAccess™ interlocking compartments for industry-best access to critical components
- Simplify operation and maximize efficiency — all sweeping functions activated through the OneTouch™ controls and drive pedal
- Ensure operator safety with our Clear-View™ design, automatic speed reduction during turns and LED headlights
- Wear-compensating main broom sweeping system extends productivity through the life of the brush
- Control dust at the side broom with our available industry exclusive DustGuard™
