Advance SW4000 Sweeper Advance Cleaning Equipment

Details

Maximize Performance, Minimize Costs

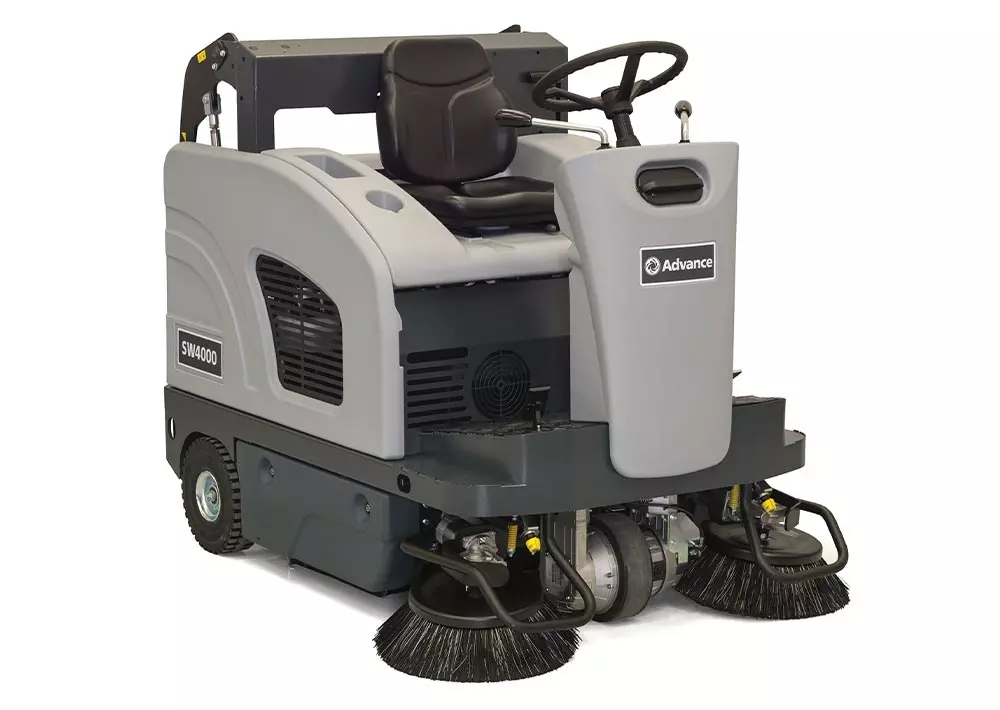

The SW4000 Rider Sweeper maximizes performance and reliability, and comes equipped with a safe and efficient hydraulic high dump for use in warehouses, schools, shopping malls, parking lots, sport centers, recycling facilities and more.

Benefits of SW4000 Rider Sweepers
The SW4000 is designed to improve productivity, simplify operation and minimize downtime to reduce your Total Cost of Ownership. Equipped with a safe and efficient retractable hopper and hydraulic high dump — which easily deposits into a standard dumper — you’ll have a floor sweeping solution that gets more done in less time.

Equipment Type
Floor Cleaning / Rider Sweepers

Batteries:
24 Volt, 310 Ah C20

Cleaning path – Dual Side Broom:
49 in (125 cm)

Debris hopper dump height:
63 in (159 cm)

Debris hopper volume:
2.6 cu ft (75 L)

Debris hopper weight:
220 lb (100 kg)

Dust filter:
75 sq ft (7 sq m)

DustGuard™ Dust-control System:
Included

DustGuard™ Tank Capacity (optional):
5.3 gal (20 L)

Easy Access Battery Compartment:
Included

Easy-to-use control panel:
Included

Electrical filter shaker:
Included

Height with overhead guard in. (cm):
78 in (199 cm)

Length x width x height (excluding side brooms):
65 x 41 x 52 in (164 x 104 x 133 cm)

Main broom sweep path:
28 in (70 cm)

Max. grade-ability (working):
20% (11.3 deg)

Max. travel speed:
4.3 mph (7 km/hr)

MaxAccess™:
Included

Min. aisle turn (cm):
76 in (192 cm)

Model No:
56383325

No tools required for attachment change:
Included

One-Touch™ Button:
Included

Productivity – maximum ft²/h (m²/h):
94,200 ft₂/hr (8,750 m2/hr)

Side broom diameter:
(2) 18 in (45 cm)

Sound level:
65 dB A

Stage 1 DustGuard™ (optional):
Side broom “fog” system for fugitive dust control

Stage 2 Vacuumized Main Broom Chamber:
Captures dust from the main broom

Stage 3 Ultra-Web® Nanofiber Filter:
>98% efficient on 0.3 – 1.0 micron particles

Stage 4 Airflow Restoration System:
Liberator™ aggressive, multi frequency vibration filter shaker

Weight with batteries – Empty:
1,648 lb (749 kg)

Weight with batteries – GVW:
2,215 lb (1,005 kg)

  • Simplify operation and maximize efficiency with our Clear-View™ design, plus One-Touch™ controls and drive pedal to activate/deactivate all sweeping functions
  • Invest in a sweeper that’s built to last — retractable spring-loaded side brooms, rugged steel guards, foam filled wheels and robust polyethylene covers
  • Maneuver in tight corners and narrow aisles with intuitive front wheel steering and front wheel drive
  • Expedite service and repair with MaxAccess™ interlocking compartments and tool-less broom and filter removal
  • Deliver superior dust control with the optional DustGuard™ [4.7 Innovations] misting system
