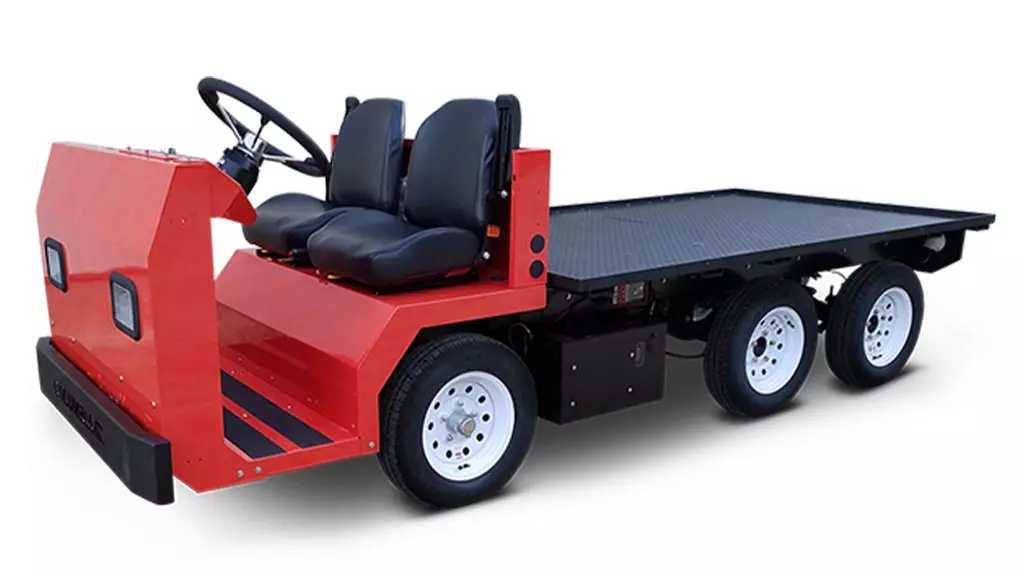

Columbia Custom Platform Burden Carrier Columbia

Details

Columbia’s most versatile custom platform is available in several axle, battery and drive configurations, which makes it the ultimate platform on which a vehicle configured specific to your needs and application can be customized.

Popular Options Include:

  • Seat belts
  • Steel cab with doors
  • Hour meter
  • Battery exchange system
  • Turn signals
  • 14 passenger tram package
  • DC to DC converters
  • In-motion beeper
Equipment Type
Burden Carriers / Utility Vehicles

Step Height:
11.5 in.

Load Bed Height:
28 in.

Ground Clearance:
5 in.

Max Speed Forward:
15 MPH

Range:
Up to 30 miles

Batteries:
Eight, 6 volt, 232 amp hour, 122 minute

Charger:
Built in, micro-processor control, fully sealed, anti-drive away interlock, 110-240 VAC, 50 / v60 HZ

Controller Type:
Programmable, solid state, reduced speed reverse with diagnostic LED & calibrator interface

Controller Rating:
500 amp

Motor Braking Mode:
Regenerative and pedal proportional braking with top speed limiting

Directional Control:
Dash-mounted safety directional key-switch

Passenger Capacity:
2 with up to 14 (optional Tram Package seating)

Seating:
Adjustable bucket seats with arm rests

Lighting:
Dual recessed head, Tail and brake lights

  • Bed Length 96″
  • Steel box beam frame
  • Front and rear steel bumpers
  • Perfect platform for customization
  • Dual head and tail lights
  • Adjustable bucket seats
  • Class H motor insulation
