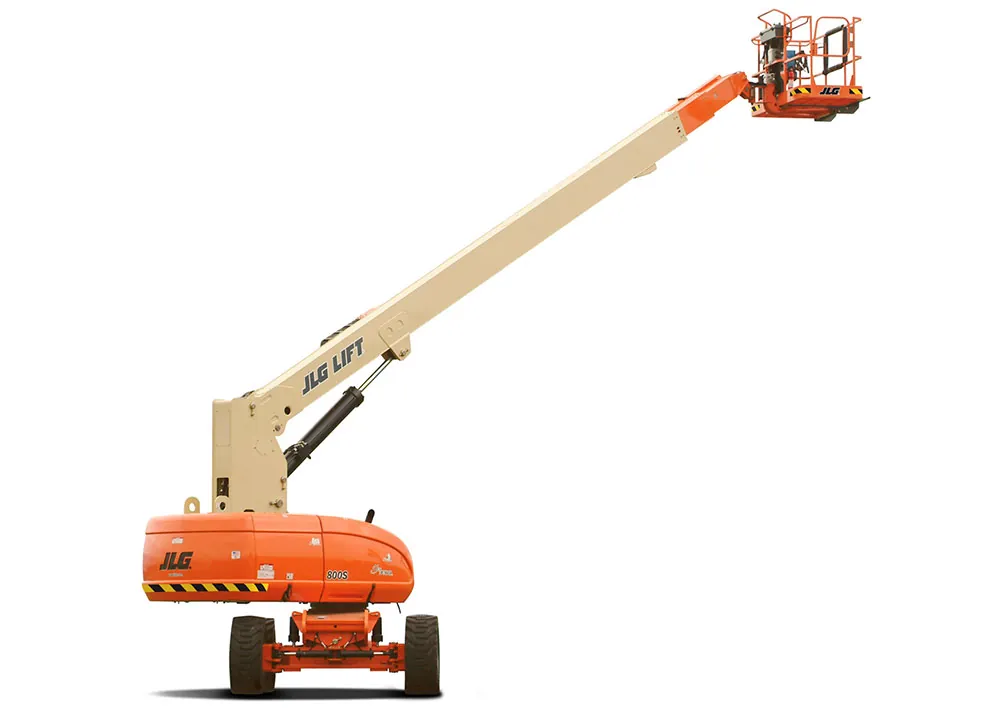

JLG 800S Boom Lift

Details

Go from the ground to 80 ft in less than 67 seconds—that’s 40% faster than the competition. JLG 800S telescopic boom lifts deliver increased horizontal outreach, more platform capacity and job-proven performance. The narrow, fixed-width chassis on an 800S telescopic boom lift gets you in and out of confined spaces, while the available articulating jib gives you the additional access you need.

Key Specs

  • Platform Height: 80 ft / 24.38 m
  • Platform Capacity – Restricted: 1000 lb / 453.59 kg
  • Platform Capacity – Unrestricted: 500 lb / 226.80 kg
  • Horizontal Outreach: 71 ft / 21.64 m

Key Features

  • Reach full elevation in less than 70 seconds
  • Advanced Design Electronics System reduces your costs by increasing fuel efficiency and reducing emissions
  • Equipped with a fuel-efficient Tier 4 engine
  • Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
Equipment Type
Aerial Lifts / Boom Lifts

Capacity – Fuel Tank:
31 gal. / 117.35 L

Engine Type – Diesel:
DEUTZ TD 2.9L Tier 4 Final 67 hp

Engine Type – Dual Fuel:
Ford MSG425 84hp

Drive Speed – 2WD:
3.5 mph / 5.60 km/h

Drive Speed – 4WD:
3.5 mph / 5.60 km/h

Grade-ability – 2WD:
25 %

Grade-ability – 4WD:
45 %

Jib – Range of Articulation:
0 degrees

Platform Capacity – Restricted:
1000 lb / 453.59 kg

Platform Capacity – Unrestricted:
500 lb / 226.80

Swing:
360 Degrees

Swing Type:
Continuous

Turning Radius – Outside:
19 ft 8 in / 5.99 m

Machine Height:
9 ft 11 in. / 3.02 m

Machine Length:
37 ft 3 in. / 11.35 m

Machine Width:
8 ft 2 in. / 2.5 m

Platform Dimension A:
3 ft / 0.91 m

Platform Dimension B:
8 ft / 2.44 m

Horizontal Outreach:
71 ft  / 21.64 m

Platform Height:
80 ft  / 24.38 m

Machine Weight:
33030 lb / 14982.16 kg

  • Reach full elevation in less than 70 seconds
  • Advanced Design Electronics System reduces your costs by increasing fuel efficiency and reducing emissions
  • Equipped with a fuel-efficient Tier 4 engine
  • Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
