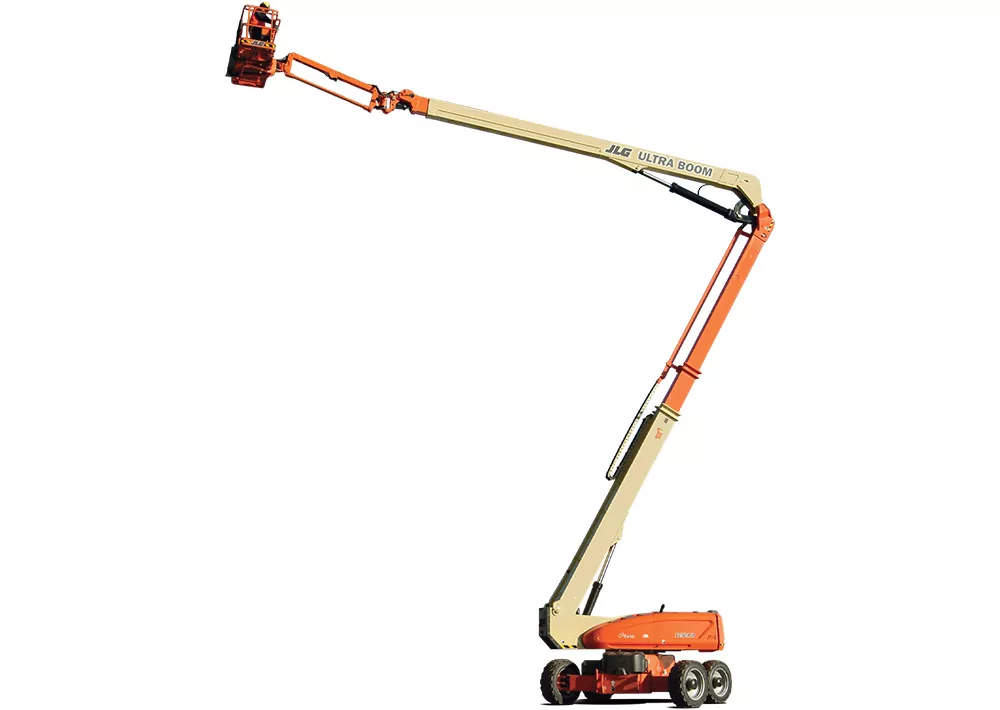

JLG 1250AJP Boom Lift
Details
On the job site, days are measured by productivity. Your productivity. Which means you need equipment that stands up to the day’s demands. JLG® engine powered articulating boom lifts give you the extra reach you need to work over and around obstacles on the job site. They offer exceptional outreach, high capacity, versatile performance and easy maintenance. The larger work envelope on an articulating lift provides you with access to those hard-to-reach places.
For big jobs that demand both height and reach, the exclusive QuikStik Boom on the 1250AJP lets you go from full elevation to the ground in 115 seconds for maximum productivity. This articulating lift offers surprising mobility, a tight turning radius and crab steer in an ultra-sized package with a standard oscillating axle for improved traction on uneven surfaces.
Key Specs
- Platform Height: 125 ft / 38.1 m
- Platform Capacity – Restricted: 1000 lb / 453.59 kg
- Platform Capacity – Unrestricted: 500 lb / 226.80 kg
- Horizontal Outreach: 63 ft 2 in. / 19.25 m
Key Features
- Ground to 120 ft in 95 seconds
- Strong 100,000-psi steel and a dual 1,000 lb / 500 lb capacity give you stability and capacity
- Equipped with a fuel-efficient Tier 4 engine
- Equipment Type
- Aerial Lifts / Boom Lifts
Auxiliary Power:
12 Volts DC
Capacity – Fuel Tank:
31 gal. / 117.35 L
Engine Type – Diesel:
DEUTZ TCD2.9L4 Tier 4 Final 74.2 hp
Axle Oscillation:
8 in. / 0.2 m
Drive Speed – 4WD:
3.3 mph / 5.23 km/h
Grade-ability – 4WD:
45 %
Platform Capacity – Restricted:
1000 lb / 453.59 kg
Platform Capacity – Unrestricted:
500 lb / 226.80 kg
Swing:
360 Degrees
Swing Type:
Continuous
Turning Radius – Outside (axles extended):
19 ft 4 in. / 5.89 m
Turning Radius – Outside (axles retracted):
22 ft 6 in. / 6.86 m
Jib – Range of Articulation:
130 Degrees
Transport Length:
37 ft 7 in. / 11.46 m
Ground Clearance:
1 ft / 0.3 m
Horizontal Jib Rotation:
125 Degrees
Horizontal Outreach:
63 ft 2 in. / 19.25 m
Platform Height:
125 ft / 38.1 m
Up and Over Height:
60 ft 6 in. / 18.44 m
Machine Weight:
44000 lb / 19958.06 kg
- Ground to 120 ft in 95 seconds
- Strong 100,000-psi steel and a dual 1,000 lb / 500 lb capacity give you stability and capacity
- Equipped with a fuel-efficient Tier 4 engine
